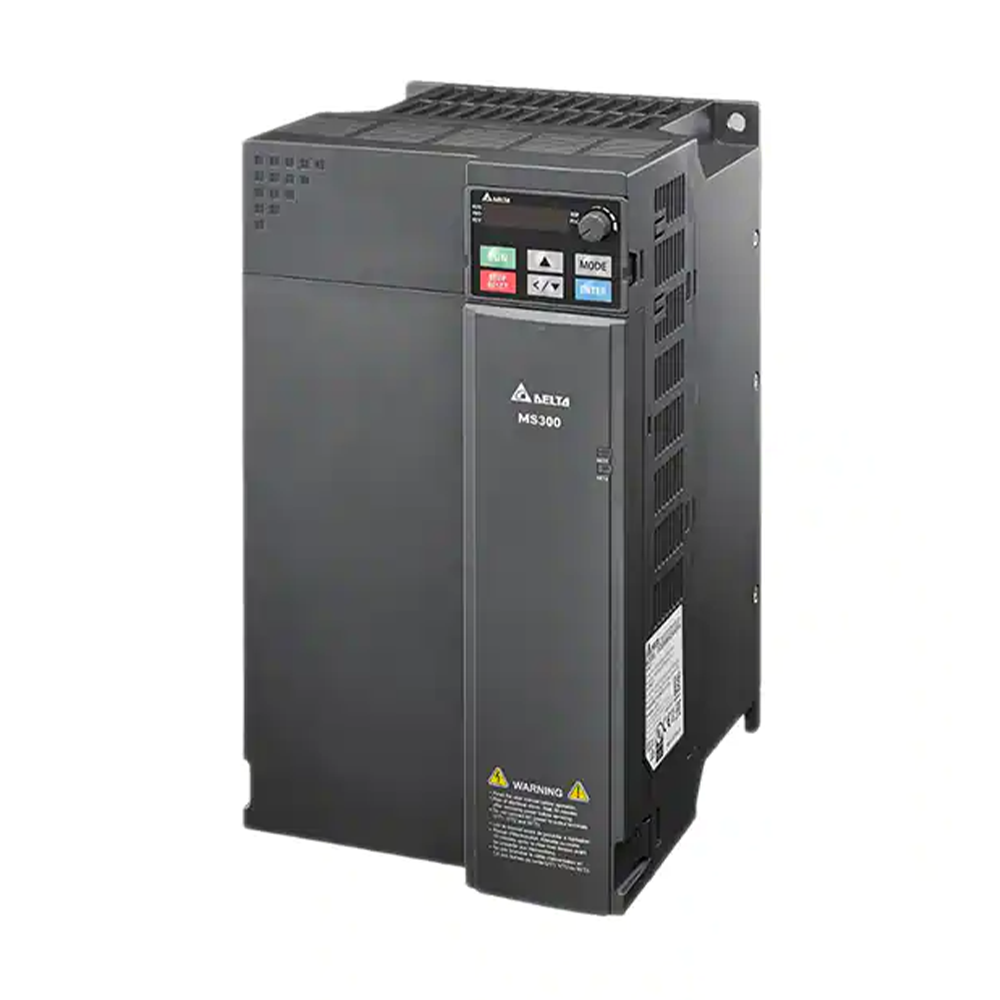

Delta VFD 22kW 400V VFD45AMS43ANSAA-MS300
Product: Inverter/Variable Frequency Drive (VFD)
Model : VFD45AMS43ANSAA
Capacity : 22KW, 30.0HP
Input: 3PH, 400-480V, 50-60Hz,
Output: 3PH, 0-480V, 0.1-599Hz,(ND)49A,(HD)45A
Brand: Delta,
Origin: Taiwan, Product of China
Warranty: One Year
Mobile Number: +880-1750668006
See More Products, Visit our Website: www.puresolutionbd.com
Model Name : VFD45AMS43ANSAA
Series : MS-300
Input Voltage – Phase : 460 V – 3 Phase
Motor Power Range : 30.0HP – 22KW
Frequency : 0-599Hz
Frame Size : A5
IP Level : IP 20
EMC Filter : Optional
Normal Duty* Amps : 49A
Heavy Duty** Amps : 45A
Weight: 7.7Kg
Dimensions : 6.89 (in) x 11.81 (in) x 7.56(in)
* Normal duty: rated current 120% for 60 seconds; 150% for 3 seconds
** Heavy duty: rated current 150% for 60 seconds; 200% for 3 seconds
-
