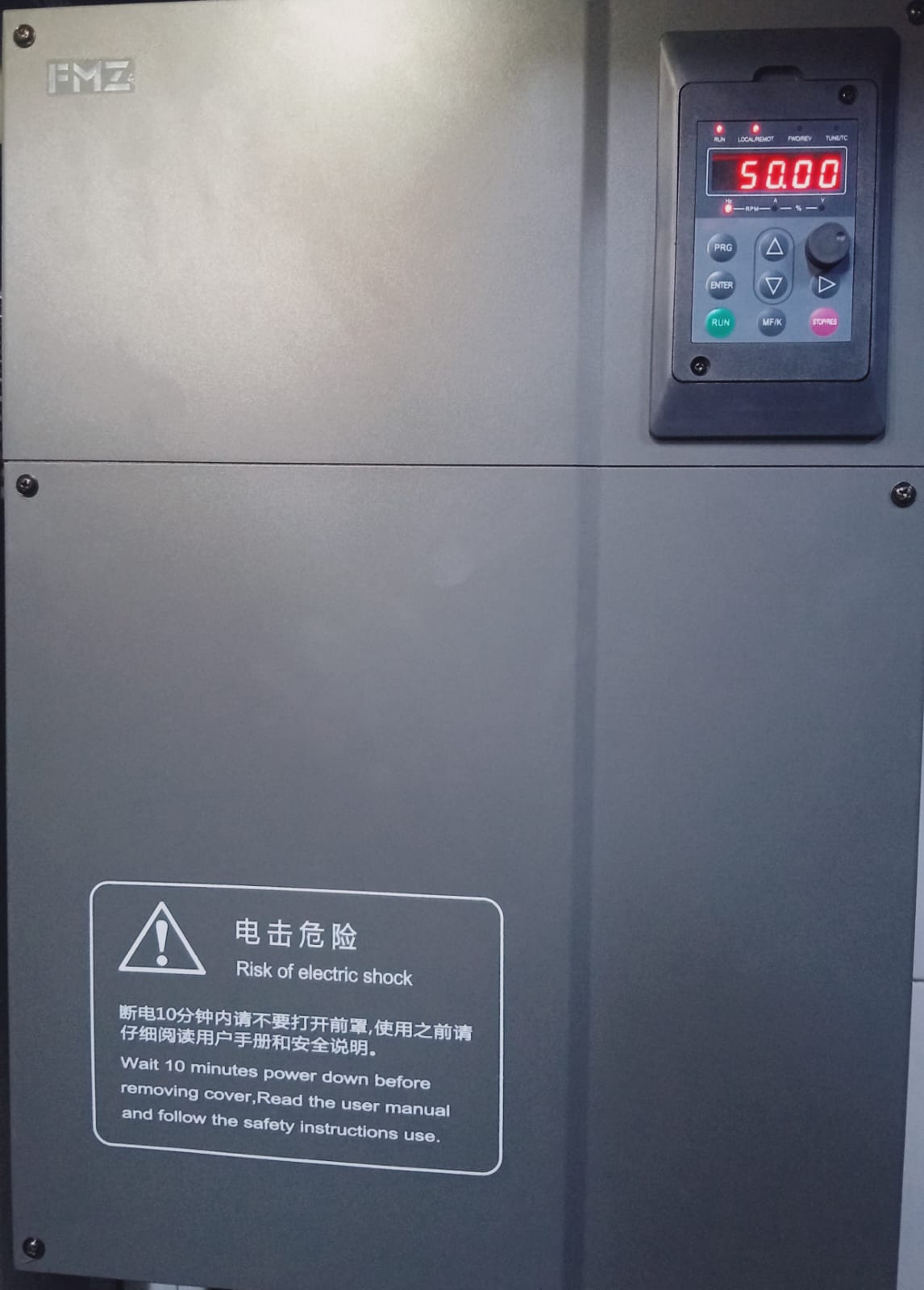

FMZ VFD- 75kW 400V H580-75RG/90RP-T4, H580-Series
Product: Inverter/Variable Frequency Drive (VFD)

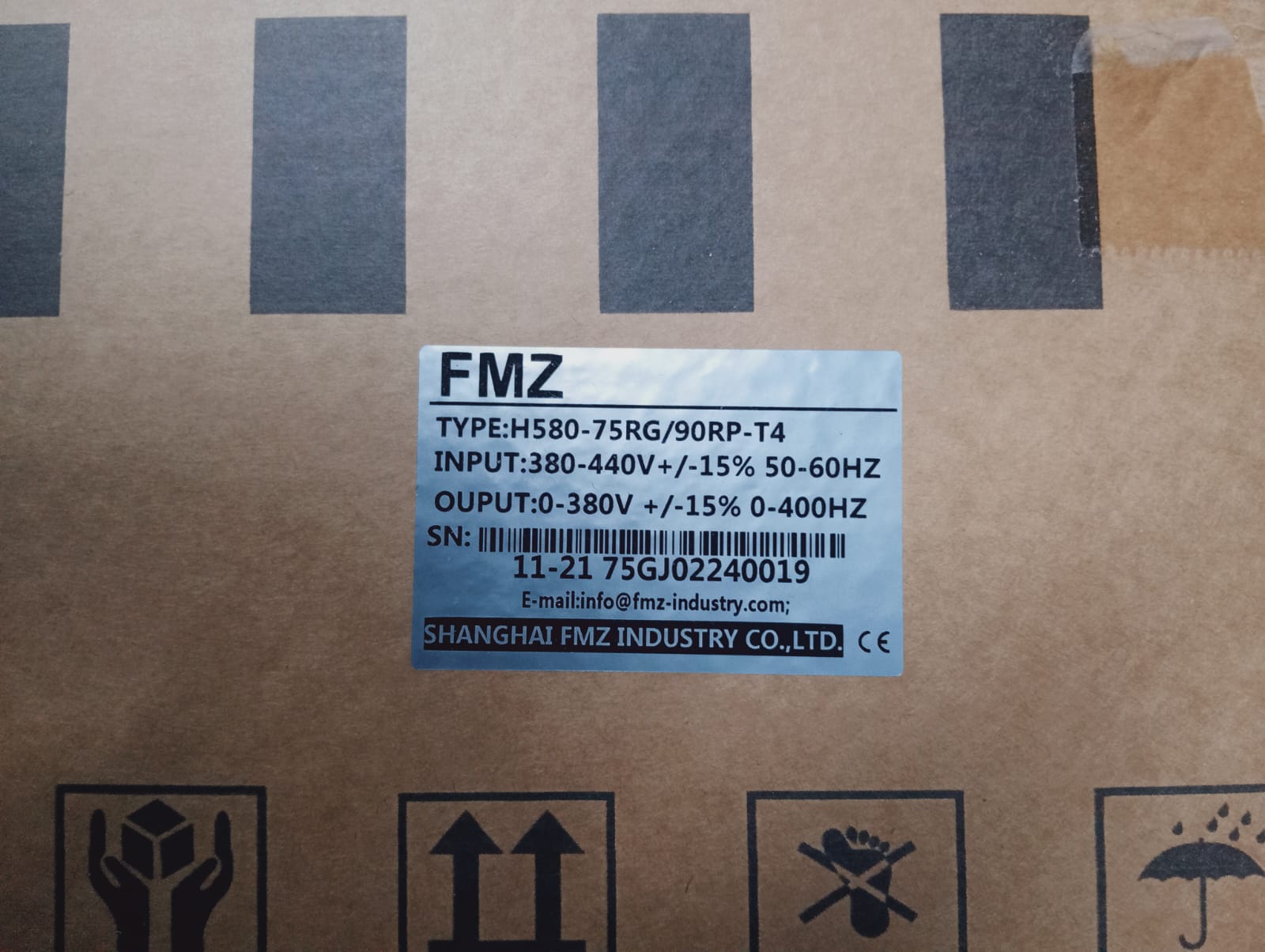

Model : H580-75RG/90RP-T4
Capacity : 75KW, 100HP
Input: 3PH, 380-440V, 50-60Hz,
Output: 3PH, 440V, 0-400Hz, 150A
Brand: FMZ,
Origin: China
Warranty: One Year
Application: Elevator/Escalator/Lift/Air Compressor/Conveyor Belt/Injection Molding Machine or Heavy Duty portion.
Mobile Number: +880-1750668006
See More Products, Visit our Website: www.puresolutionbd.com
Model Name : H580-75RG/90RP-T4
Series : H580-Series
Input Voltage – Phase : 380-440 V – 3 Phase
Motor Power Range : 100HP – 75KW
Frequency : 0-400Hz
Frame Size : A5
IP Level : IP 20
Normal Duty* Amps : 176A
Heavy Duty** Amps : 150A
Weight: 38 Kg
Dimensions : (H*W*D)mm 600*385*265
-
H580-75RG/90RP-T4
-
China
-
01 Year
-
China
