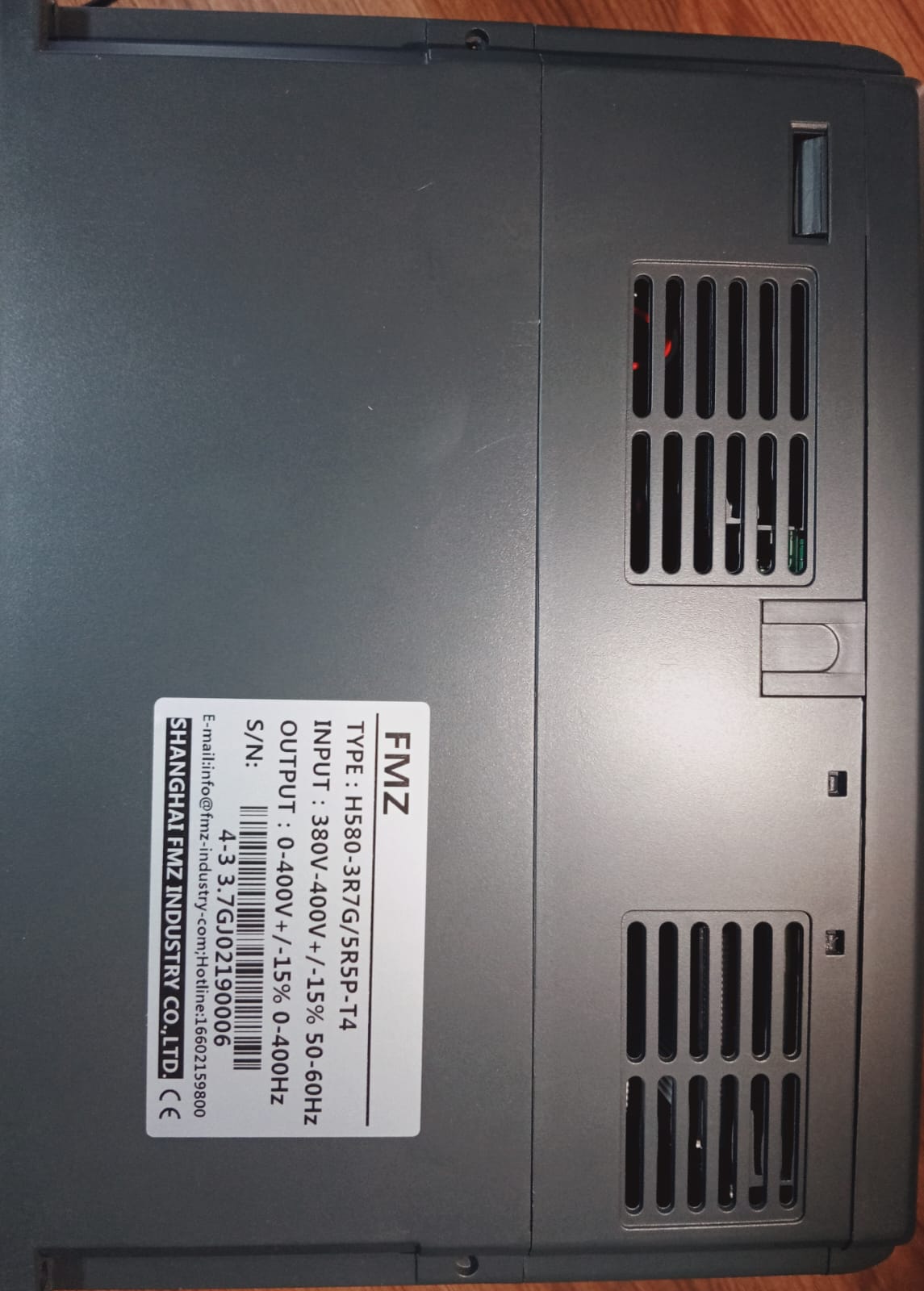

FMZ VFD- 3.7kW 400V H580-3R7G/5R5P-T4, H580-Series
৳ 19000
৳ 22000
Inverter/Variable Frequency Drive
Model : H580-3R7G/5R5P-T4
Capacity : 3.7KW, 5HP
Input: 3PH, 380-440V, 50-60Hz,
Output: 3PH, 440V, 0-400Hz, 9A/13A
Brand: FMZ,
Origin: China
Warranty: One Year
Application: Air Compressor/Conveyor Belt/Injection Molding Machine or Heavy Duty portion.
Mobile Number: +880-1750668006
See More Products, Visit our Website: www.puresolutionbd.com
Model Name : H580-3R7G/5R5P-T4
Series : H580-Series
Input Voltage – Phase : 380-440 V – 3 Phase
Motor Power Range : 5HP – 3.7KW
Frequency : 0-400Hz
Frame Size : A5
IP Level : IP 20
Normal Duty* Amps : 13A
Heavy Duty** Amps : 9A
Weight: 3.6 Kg
Dimensions : (H*W*D)mm 248*160*183
-
H580-3R7G/5R5P-T4
-
China
-
01 Year
-
China
